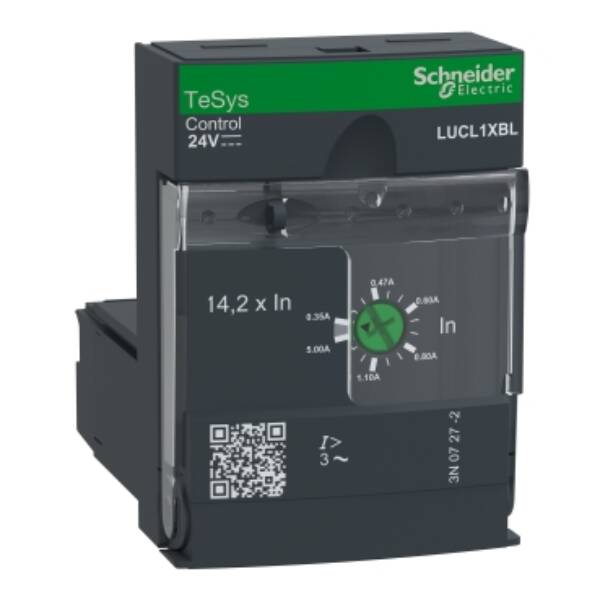

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL1XBL
Standard control unit, TeSys U, 0.35-1.4A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL1XBL

LUCL1XBL

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL1XBL

Control

List Price £99.39 +VAT

Our Price £74.54 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U magnetic control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides short circuit protection to motors with a rated current In 0.35-1.4A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCL1XBL
Weight (kg)
0.13 kg
Type
TeSys U
Type of motor protection
Other
Number of poles
3
Rated control supply voltage Us at DC
24 V
Initial value of the undelayed short-circuit release - setting range
5
Voltage type for actuating
DC
End value adjustment range undelayed short-circuit release
20
With ground fault protection function
FALSE
Rated permanent current Iu
1.4
Short-circuit release function
Undelayed

Datasheet for LUCL1XBL - Standard control unit, TeSys U, 0.35-1.4A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL1XBL

Download
