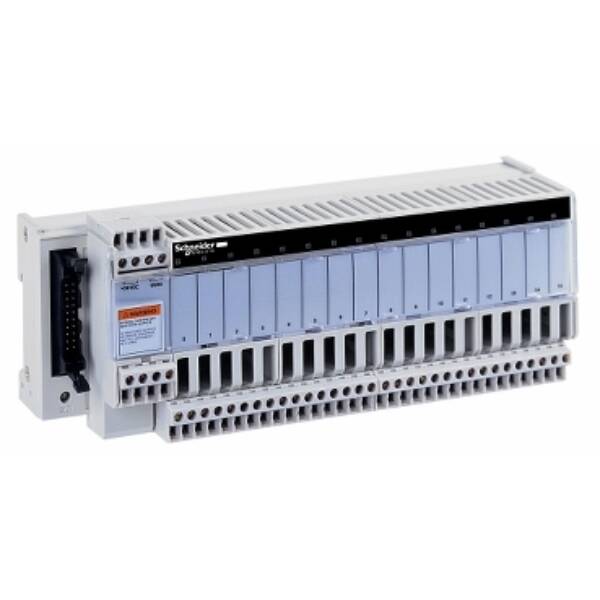

sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC - Schneider Electric - ABE7S16E2B1

sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC - Schneider Electric - ABE7S16E2B1

ABE7S16E2B1

sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC - Schneider Electric - ABE7S16E2B1

Automation

~~List Price £174.72 +VAT~~

Our Price £139.78 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered solid state output relay, provides 16 channels. It has 2 terminals per channel. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a current of 0.012A per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.37kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand: Schneider Electric
Range: Advantys Telefast ABE 7
Part No: ABE7S16E2B1
Weight (kg): 0.44 kg
Type: Advantys Telefast ABE 7
Colour: Grey
Length: 58
Type of electrical connection 2: Plug-in connection
Rated voltage: 24
Type of electrical connection 1: Screw connection
Number of clamp positions per pole: 2
Inflammability class of insulation material acc. with UL94: Other
Mounting method: DIN rail (top hat rail) 35 mm
Height at lowest possible mounting height: 70
Drill hole distance centrically: 10
Connectable conductor cross section solid-core: 0.324 mm²
Width/grid dimension: 206
Closing plate required: FALSE
Connection position: Above
Explosion-tested version 'Ex e': FALSE
Number of poles: 16
Material insulation body: Thermoplastic
Operation temperature: -5…60 °C
Transparent: FALSE
Rated current In: 0.12

Datasheet for ABE7S16E2B1 - sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC - Schneider Electric - ABE7S16E2B1

Download
