ABE7P16T318

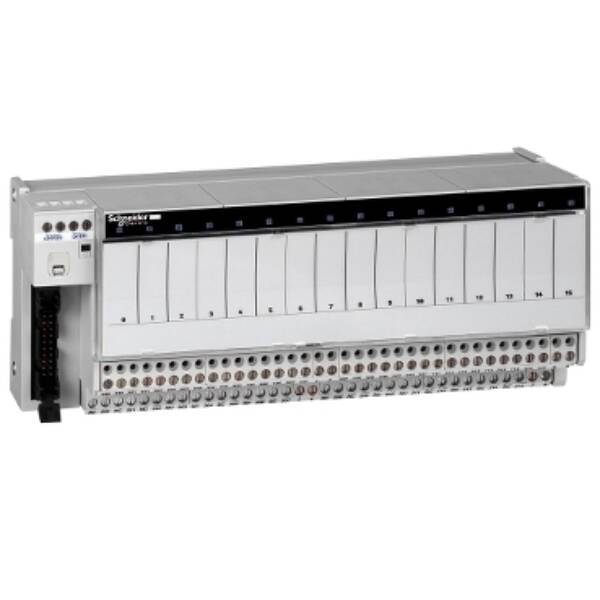

sub-base for plug-in relay ABE7 - 16 channels - fuses - isolator - relay 12.5 mm - Schneider Electric - ABE7P16T318

Automation

~~List Price £260.06 +VAT~~

Our Price £208.05 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug in relay sub-base offers 1 switch disconnector per channel. The output sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 1kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand: Schneider Electric
Range: Advantys Telefast ABE 7
Part No: ABE7P16T318
Weight (kg): 0.91 kg
Type: Advantys Telefast ABE 7
Type of electrical accessory: Other
Type of mechanical accessory: Other
