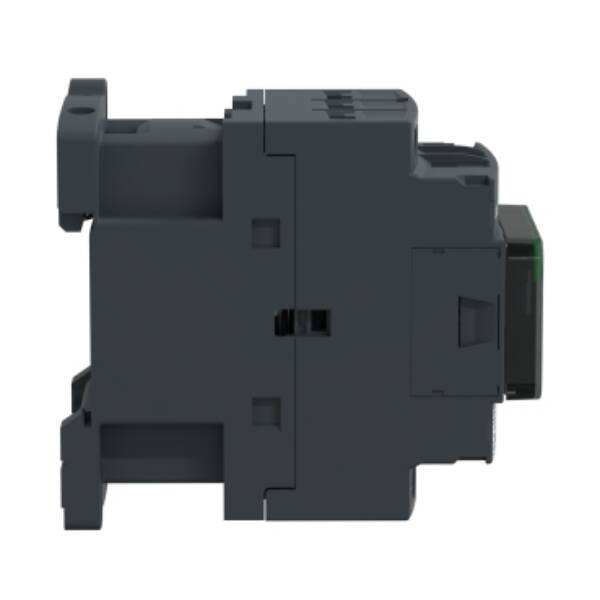

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 12 V DC standard coil - Schneider Electric - CAD32JD

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 12 V DC standard coil - Schneider Electric - CAD32JD

CAD32JD

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 12 V DC standard coil - Schneider Electric - CAD32JD

Control

~~List Price £92.29 +VAT~~

Our Price £69.22 +VAT

SAVE 25% OFF List Price

Fast Track Delivery Product

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 12V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys K, D, SK Control Relays
Part No: CAD32JD
Weight (kg): 0.53 kg
Type: TeSys K, D, SK Control Relays
Interface: FALSE
Connection type auxiliary circuit: Screw connection
Number of auxiliary contacts as normally closed contact: 2
With LED indication: FALSE
Number of auxiliary contacts as normally open contact: 3
Mounting method: DIN-rail/screw
Rated operation current Ie, 400 V: 10
Voltage type for actuating: DC
Rated control supply voltage Us at DC: 12 V
Manual operation possible: FALSE

Datasheet for CAD32JD - TeSys D control relay - 3 NO + 2 NC - <= 690 V - 12 V DC standard coil - Schneider Electric - CAD32JD

Download
