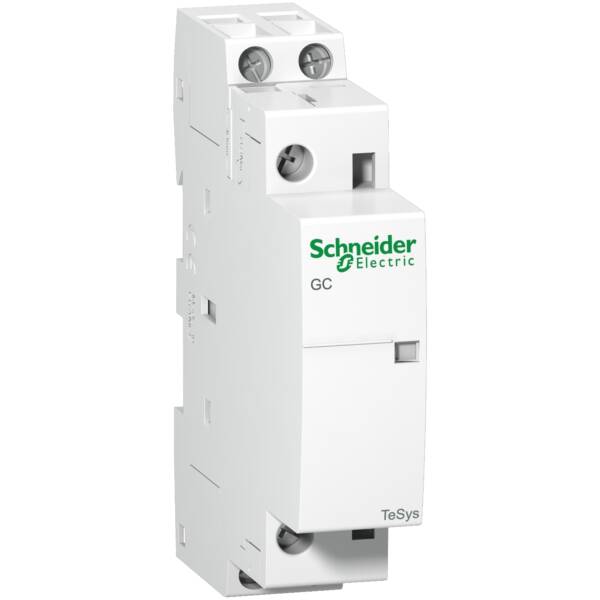

TeSys GC - modular contactor - 16 A - 2 NO - coil 220...240 V AC - Schneider Electric - GC1620M5

TeSys GC - modular contactor - 16 A - 2 NO - coil 220...240 V AC - Schneider Electric - GC1620M5

GC1620M5

TeSys GC - modular contactor - 16 A - 2 NO - coil 220...240 V AC - Schneider Electric - GC1620M5

Control

~~List Price £42.61 +VAT~~

Our Price £31.96 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys GC modular contactor, 2 poles (2NO), 16A/250V AC-7a (heating) and 5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).

Brand: Schneider Electric
Range: TeSys GC & GY
Part No: GC1620M5
Weight (kg): 0.12 kg
Type: TeSys GC & GY
Built-in depth: 62.5
Max. load fluorescent lamp (parallel compensated): 600
Max. incandescent lamp load: 1800
Max. load fluorescent lamp: 650
Rated excitation voltage: 220…240 V
Number of modular spacings: 2
Max. load fluorescent lamp (Duo circuit): 800
Rated operation current: 16
Rated operating voltage: 250 V
Utility category: 7
Number of contacts as normally open contact: 2
Slider for hand switch: FALSE
Voltage type (operating voltage): AC
Additional equipment possible: TRUE
Voltage type (excitation voltage): AC
Degree of protection (IP): IP20

Datasheet for GC1620M5 - TeSys GC - modular contactor - 16 A - 2 NO - coil 220...240 V AC - Schneider Electric - GC1620M5

Download
