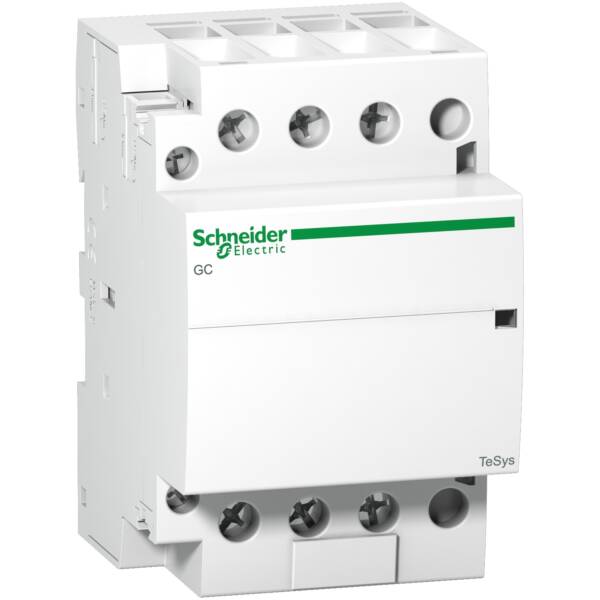

TeSys GC - modular contactor - 63 A - 3 NO - coil 220...240 V AC - Schneider Electric - GC6330M5

TeSys GC - modular contactor - 63 A - 3 NO - coil 220...240 V AC - Schneider Electric - GC6330M5

GC6330M5

TeSys GC - modular contactor - 63 A - 3 NO - coil 220...240 V AC - Schneider Electric - GC6330M5

Control

~~List Price £147.87 +VAT~~

Our Price £110.90 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys GC modular contactor, 3 poles (3NO), 63A/415V AC-7a (heating) and 25A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 4 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).

Brand: Schneider Electric
Range: TeSys GC & GY
Part No: GC6330M5
Weight (kg): 0.31 kg
Type: TeSys GC & GY
Built-in depth: 62.5
Max. load fluorescent lamp (parallel compensated): 2200
Max. incandescent lamp load: 8000
Number of modular spacings: 3
Rated excitation voltage: 220…240 V
Max. load fluorescent lamp: 3500
Max. load fluorescent lamp (Duo circuit): 4500
Rated operation current: 63
Utility category: 7
Rated operating voltage: 0…415 V
Number of contacts as normally open contact: 3
Slider for hand switch: FALSE
Additional equipment possible: TRUE
Voltage type (operating voltage): AC
Voltage type (excitation voltage): AC
Degree of protection (IP): IP20

Datasheet for GC6330M5 - TeSys GC - modular contactor - 63 A - 3 NO - coil 220...240 V AC - Schneider Electric - GC6330M5

Download
