GF1611M7

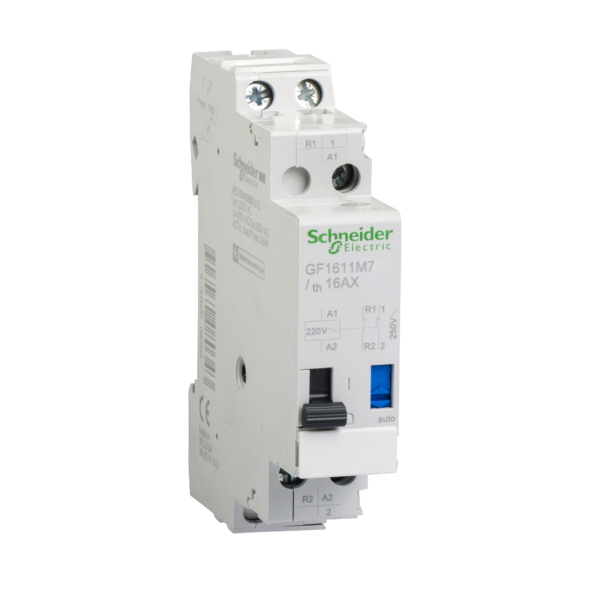

TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 220 V AC 50/60 Hz coil - Schneider Electric - GF1611M7

Control

~~List Price £48.88 +VAT~~

Our Price £36.66 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Impulse relay designed for TeSys GF. Rated Current 16A, 2P. with contact composition 1 NO + 1 NC. Rated Operational Voltage 250VAC, 50/60 Hz AC-1. Impulse relay with control voltage of 220VAC, 50/60 Hz.

Brand: Schneider Electric
Range: TeSys GC & GY
Part No: GF1611M7
Weight (kg): 0.11 kg
Type: TeSys GC & GY
Frequency control voltage 1: 50…60 Hz
Built-in depth: 64
Rated switch current: 16
Max. load fluorescent lamp (parallel compensated): 920
Voltage type of supply voltage: AC
Max. incandescent lamp load: 1600
Supply voltage: 0…250 V
Max. load fluorescent lamp: 1260
Width in number of modular spacings: 1
Max. load fluorescent lamp (Duo circuit): 2000
Mounting method: DIN rail
Control voltage 1: 220 V
Type of control voltage 1: AC
Max. switching current (cos phi = 0.6): 16
Number of contacts as normally open contact: 1
Function: Mechanical switch
Manual operation possible: TRUE
Number of contacts as normally closed contact: 1

Datasheet for GF1611M7 - TeSys GF - impulse relay - 16 A - 1 NO + 1 NC - 220 V AC 50/60 Hz coil - Schneider Electric - GF1611M7

Download
