GS2J3

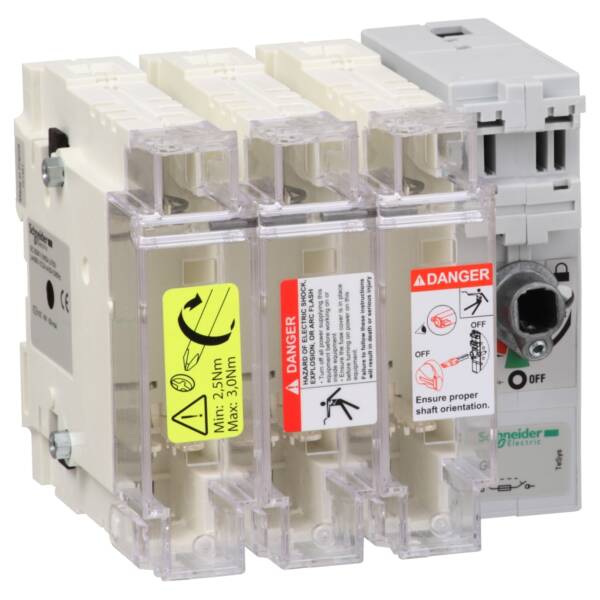

TeSys GS - switch-disconnector-fuse - 3 P - 100A - NFC 22 x 58 mm - Schneider Electric - GS2J3

Control

~~List Price £279.44 +VAT~~

Our Price £209.58 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with NFC cylindrical fuse links size 22x58mm up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG 22x58mm cylindrical fuse links without strickers DF2FA, DF2FN and with strickers DF3FA, DF3N are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys GS
Part No: GS2J3
Weight (kg): 1.86 kg
Type: TeSys GS
