GS2VG3

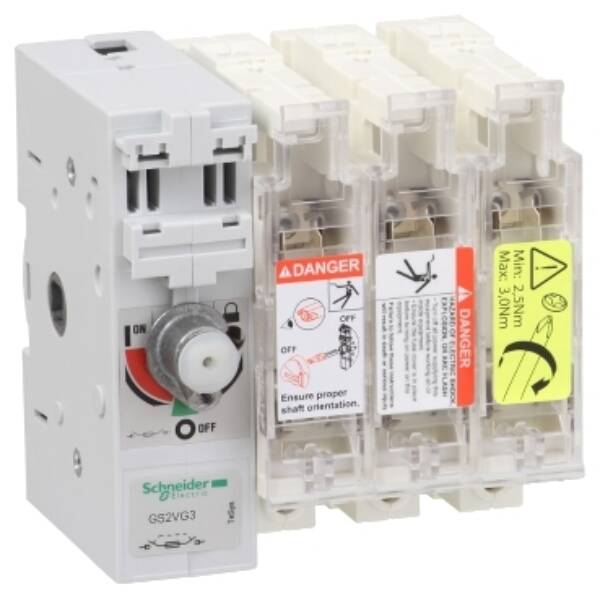

TeSys GS - switch-disconnector-fuse - 3 P - 1250A - DIN 4 - Schneider Electric - GS2VG3

Control

~~List Price £3,873.01 +VAT~~

Our Price £2,904.76 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys GS fuse switch-disconnector, 3 poles (3P), 1250A/1000V, to be used with DIN blade fuse links size 4 up to 1250A, for motor applications up to 560kW@400V AC-23. To be equipped with an external left-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 4 blade fuse links without strickers DF2LA, DF2LN and with strickers DF4LA, DF4LN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys GS
Part No: GS2VG3
Weight (kg): 25.00 kg
Type: TeSys GS
