GS2KK4

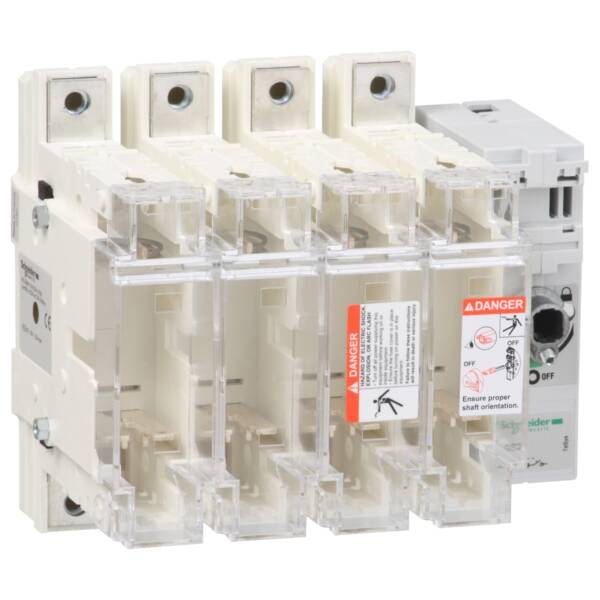

TeSys GS - switch-disconnector-fuse - 4 P - 125A - DIN 00 - Schneider Electric - GS2KK4

Control

~~List Price £373.56 +VAT~~

Our Price £280.17 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys GS fuse switch-disconnector, 4 poles (4P), 125A/750V, to be used with DIN blade fuse links size 00 up to 125A, for motor applications up to 63kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 4P terminal shrouds GS1AP34 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). Type aM and gG size 00 blade fuse links without strickers DF2GA, DF2GN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys GS
Part No: GS2KK4
Weight (kg): 2.27 kg
Type: TeSys GS
