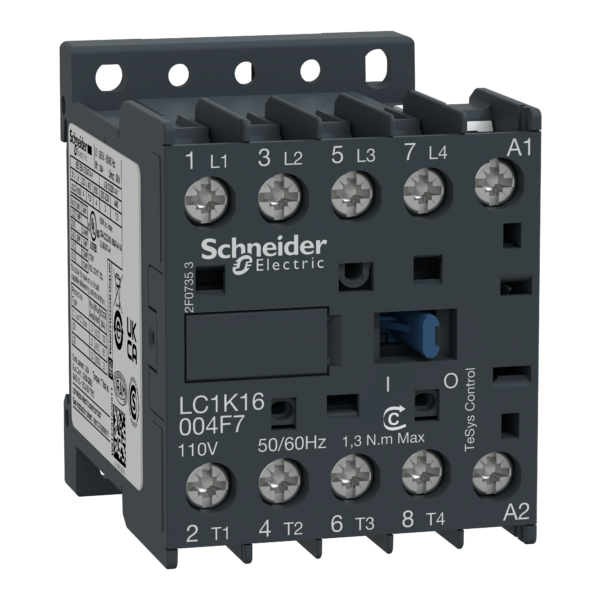

TeSys K contactor - 4P (4 NO) - AC-1 <= 440 V 20 A - 110 V AC coil - Schneider Electric - LC1K16004F7

TeSys K contactor - 4P (4 NO) - AC-1 <= 440 V 20 A - 110 V AC coil - Schneider Electric - LC1K16004F7

LC1K16004F7

TeSys K contactor - 4P (4 NO) - AC-1 <= 440 V 20 A - 110 V AC coil - Schneider Electric - LC1K16004F7

Control

~~List Price £41.02 +VAT~~

Our Price £30.77 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"TeSys K contactor, 4 poles (4NO), for motor control applications up to 16A/690V AC-3 (4kW@440V)," "and for non-inductive load control applications up to 20A/690V AC-1." It provides a 110V 50/60Hz AC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Brand: Schneider Electric
Range: TeSys K contactors
Part No: LC1K16004F7
Weight (kg): 0.18 kg
Type: TeSys K contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 110 V
Rated control supply voltage Us at AC 60HZ: 110 V
Number of main contacts as normally open contact: 4
Modular version: FALSE
Rated operation current Ie at AC-1, 400 V: 20
Voltage type for actuating: AC

Datasheet for LC1K16004F7 - TeSys K contactor - 4P (4 NO) - AC-1 <= 440 V 20 A - 110 V AC coil - Schneider Electric - LC1K16004F7

Download
