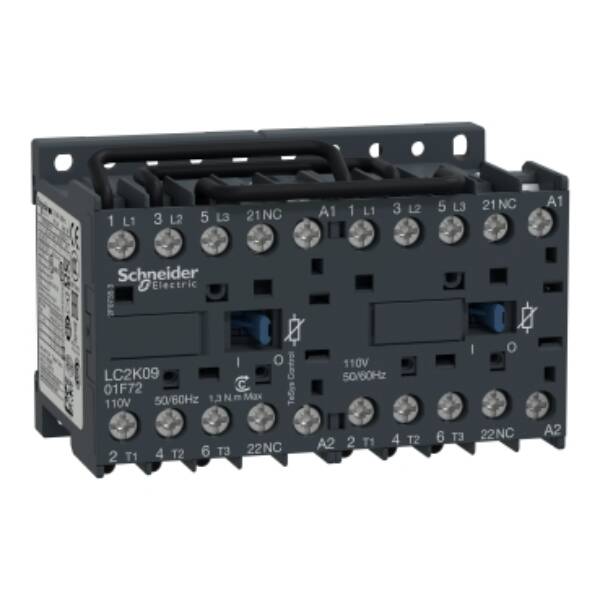

TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NC - 110 V AC coil - Schneider Electric - LC2K0901F72

TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NC - 110 V AC coil - Schneider Electric - LC2K0901F72

LC2K0901F72

TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NC - 110 V AC coil - Schneider Electric - LC2K0901F72

Control

~~List Price £91.21 +VAT~~

Our Price £68.41 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V)," "and for non-inductive load control applications up to 20A/690V AC-1." "It provides a 110V 50/60Hz AC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals." "For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications." "With feature (90mm width), DIN-rail mounting or screw fixing." "Multi standards certified (IEC, UL, CSA, CCC, EAC)

Brand: Schneider Electric
Range: TeSys K contactors
Part No: LC2K0901F72
Weight (kg): 0.37 kg
Type: TeSys K contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 110 V
Rated operation power NEMA: 3.73
Rated control supply voltage Us at AC 60HZ: 110 V
Rated operation current Ie at AC-3, 400 V: 9
Voltage type for actuating: AC
Degree of protection (IP): IP20
Function: Reversing safety
Rated operation power at AC-3, 400 V: 4
Degree of protection (NEMA): Other

Datasheet for LC2K0901F72 - TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NC - 110 V AC coil - Schneider Electric - LC2K0901F72

Download
