LRD4365

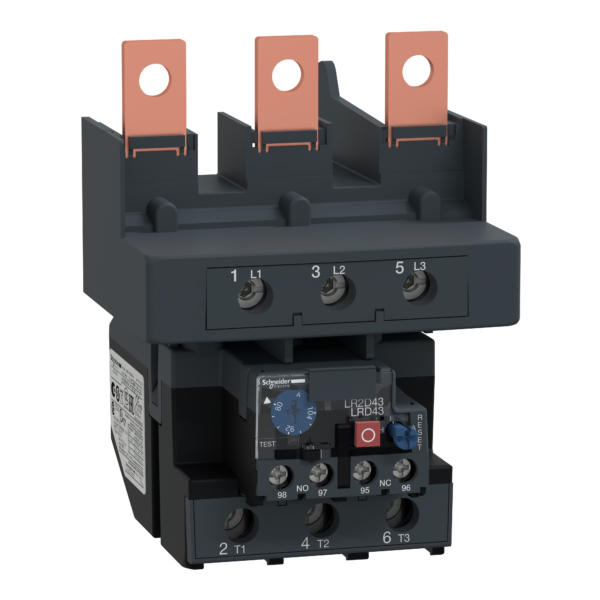

TeSys LRD thermal overload relays - 80...104 A - class 10A - Schneider Electric - LRD4365

Control

~~List Price £214.15 +VAT~~

Our Price £160.61 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys LRD thermal overload relay, 104A/1000V, thermal setting range 80-104A, tripping class 10A, for protection of 3-phase motors 45kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D115-D150. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric
Range: TeSys Deca overload relays
Part No: LRD4365
Weight (kg): 0.84 kg
Type: TeSys Deca overload relays
