LR9F75

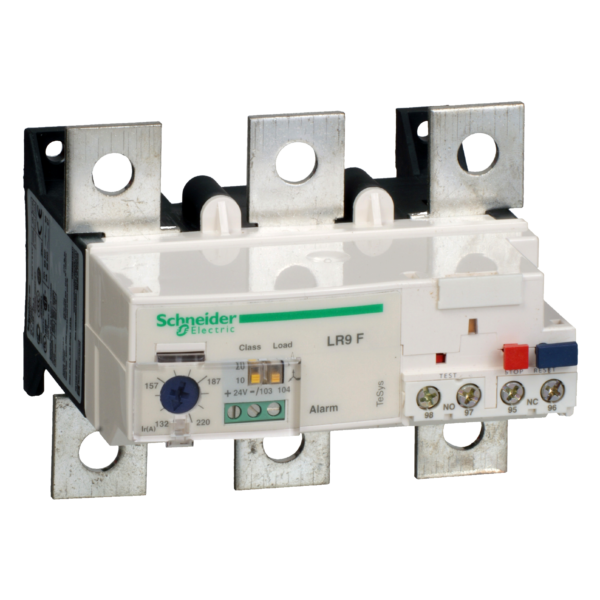

TeSys LRF - electronic thermal overload relay - 200...330 A - class 10/20 - Schneider Electric - LR9F75

Control

~~List Price £751.86 +VAT~~

Our Price £563.90 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys LR9F electronic overload relay, thermal setting range 200-330A, selectable class 10-10A-20, for protection of motors 132-160kW@400V. to be mounted directly below a TeSys F 3-pole contactor LC1 F225, F265, F330, F400, F500, use of a support mounting plate LA7F902 is mandatory (to be ordered separately). The motor protection includes thermal overload of 1-phase and 3-phase motors, phase failure, phase unbalance, prolonged starting times, stalled rotor conditions, completed with an overheating alarm function. On the front, the relay provides a thermal adjustement dial, buttons for test, stop & reset, a trip indicator, trip auxiliary contacts 1NO+1NC, and alarm circuit terminals. Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric
Range: TeSys LR9
Part No: LR9F75
Weight (kg): 1.98 kg
Type: TeSys LR9
