LT4760BA

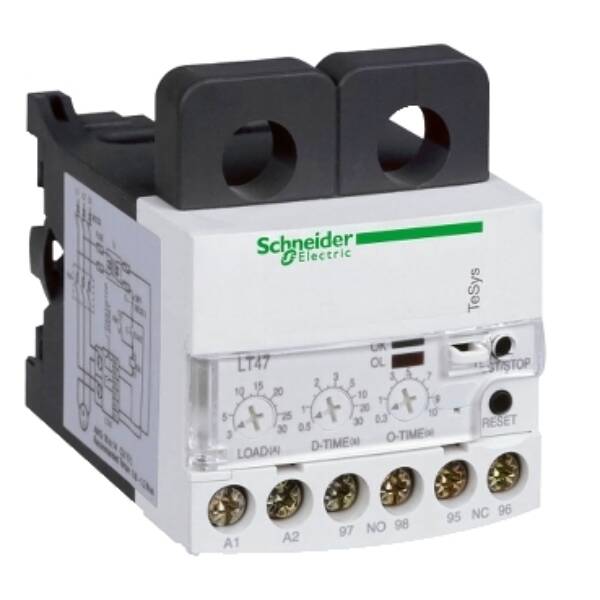

TeSys LT47 electronic over current relays - automatic - 5...60 A - 24 V AC/DC - Schneider Electric - LT4760BA

Control

~~List Price £126.27 +VAT~~

Our Price £94.70 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys LR47 electronic overcurrent relay, 60A/690V, with automatic reset, to be supplied with 24V AC/DC, for protection of motors with a rated current 5-50A. It provides 3 dials to adjust the protection, LOAD (5-60A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, R-TIME (1-120sec) for the automatic reset delay. In addition, the device trips when there is a missing phase during more than O-TIME. The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO+1NC for fault signalling. Settings can be locked by sealing the transparent cover. DIN rail mounting, without power terminals (currents monitored by 2 current transformers crossed by the motor cables). Multi standards certified (IEC, UL, CSA, CCC, EAC), it conforms to RoHS/REACh regulation.

Brand: Schneider Electric
Range: TeSys Deca overcurrent relays
Part No: LT4760BA
Weight (kg): 0.19 kg
Type: TeSys Deca overcurrent relays
