LC1SKGC200B7

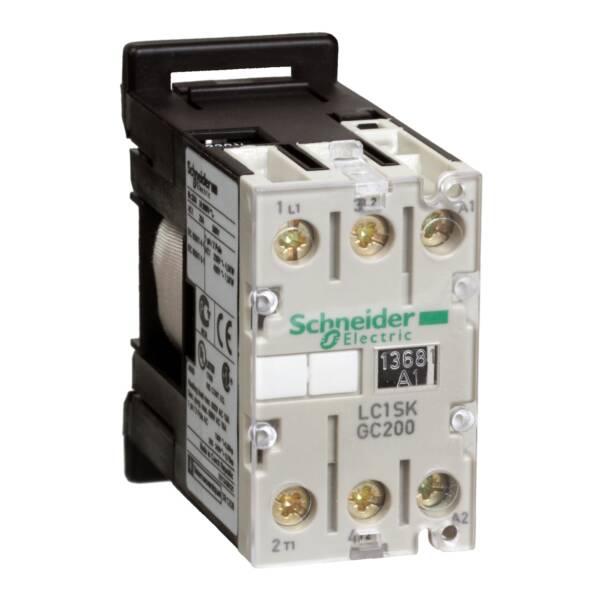

TeSys SK mini contactor - 2P (2 NO) - AC-3 - 690 V 5 A - 24 V AC coil - Schneider Electric - LC1SKGC200B7

Control

~~List Price £27.75 +VAT~~

Our Price £20.81 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, and for 1-phase motor control applications up to 5A/690V AC-3. It provides a 24V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. For use in modular panels, compact (27mm width), clipping on 35mm DIN rail. Location available to insert a suppressor module LA4SK (to be ordered separately). Multi standards certified (IEC, UL, CSA).

Brand: Schneider Electric
Range: TeSys SK
Part No: LC1SKGC200B7
Weight (kg): 0.12 kg
Type: TeSys SK
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 24 V
Rated control supply voltage Us at AC 60HZ: 24 V
Number of main contacts as normally open contact: 2
Modular version: TRUE
Rated operation current Ie at AC-1, 400 V: 20
Voltage type for actuating: AC
