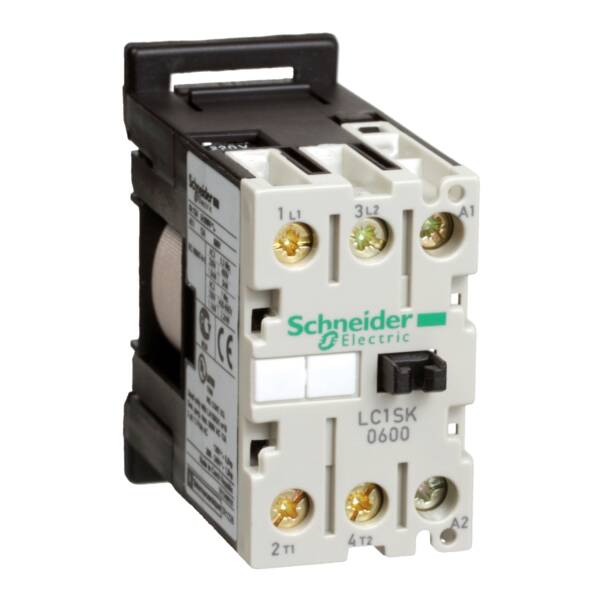

TeSys SK mini contactor - 2P (2 NO) - AC-3 - 690 V 6 A - 220 V AC coil - Schneider Electric - LC1SK0600M7
TeSys SK mini contactor - 2P (2 NO) - AC-3 - 690 V 6 A - 220 V AC coil - Schneider Electric - LC1SK0600M7

LC1SK0600M7

TeSys SK mini contactor - 2P (2 NO) - AC-3 - 690 V 6 A - 220 V AC coil - Schneider Electric - LC1SK0600M7

Control

List Price £30.16 +VAT

Our Price £22.62 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 220V 50/60Hz AC control circuit, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Brand
Schneider Electric
Range
TeSys SK
Part No
LC1SK0600M7
Weight (kg)
0.12 kg
Type
TeSys SK
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
220 V
Rated control supply voltage Us at AC 60HZ
220 V
Rated operation power at AC-3, 400 V
2.2
Number of main contacts as normally open contact
2
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
12
Rated operation current Ie at AC-3, 400 V
6
Voltage type for actuating
AC

Datasheet for LC1SK0600M7 - TeSys SK mini contactor - 2P (2 NO) - AC-3 - 690 V 6 A - 220 V AC coil - Schneider Electric - LC1SK0600M7

Download
