LC1SK0600V7

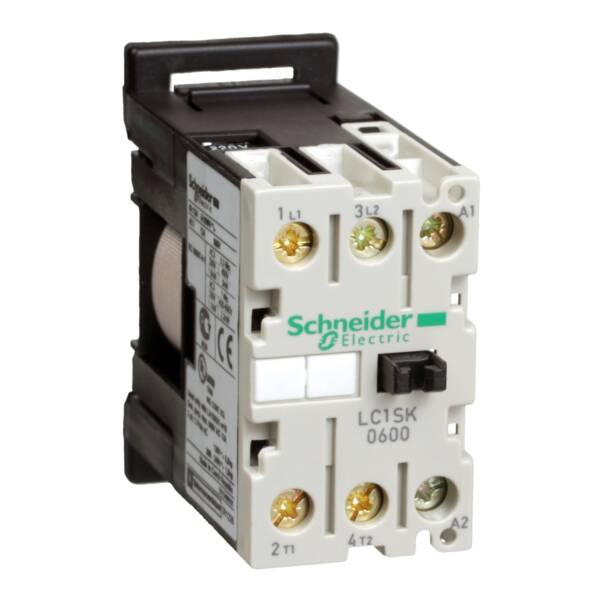

TeSys SK mini contactor - 2P (2 NO) - AC-3 - 690 V 6 A - 400 V AC coil - Schneider Electric - LC1SK0600V7

Control

~~List Price £34.63 +VAT~~

Our Price £25.97 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 400V 50/60Hz AC control circuit, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys SK
Part No: LC1SK0600V7
Weight (kg): 0.12 kg
Type: TeSys SK
