Ventilator CEM 480 m3/h - Schneider Electric - NSY17992

Ventilator CEM 480 m3/h - Schneider Electric - NSY17992

NSY17992

Ventilator CEM 480 m3/h - Schneider Electric - NSY17992

Enclosures

~~List Price £695.85 +VAT~~

Our Price £521.89 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

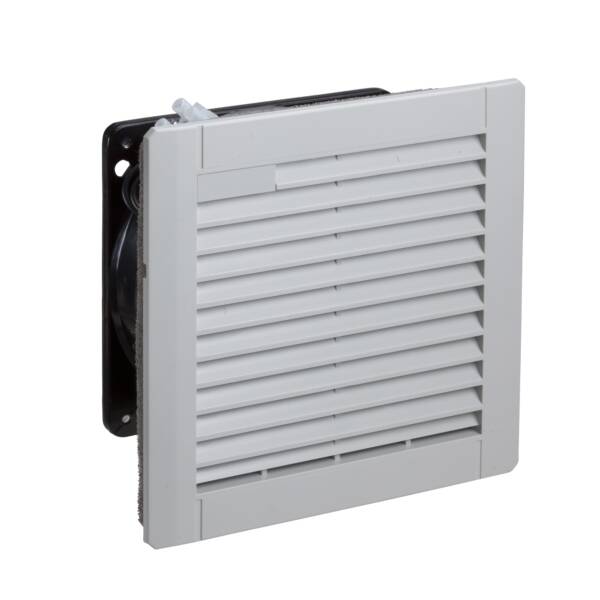

ClimaSys CV Ventilator CEM 480 m3/h. External H is 320 x W is 320 x D is 150 mm. EMC fan with standard ventilation filter. Free flow rate at 50 Hz and 230 V 50/60 Hz input voltage. ABS (acrylonitrile butadiene-styrene) for outlet grille, steel for frame of axial motor. Grey RAL 7035. IP 54 Protection. Cut-out dimensions is 292 x 292 mm.

Brand: Schneider Electric
Range: ClimaSys CV
Part No: NSY17992
Weight (kg): 3.40 kg
Type: ClimaSys CV
Suitable for 19 inch rack mounting: FALSE
Colour: Grey
Width: 325
Noise emission: 57
Air circulator: TRUE
Voltage type: AC
With protective cover: TRUE
Mounting method: Snap mounting
Operating voltage at AC 50 Hz: 230 V
Depth: 163
Operating voltage at AC 60 Hz: 230 V
Wall build in: FALSE
RAL-number: 7035
Built as slide-in ventilator: TRUE
Height: 325
EMC-version: TRUE
Roof ventilator: FALSE
With filter: TRUE
Degree of protection (IP): IP54
Number of fans: 1
Rated power: 80
Volume flow, freeblowing: 460

Datasheet for NSY17992 - Ventilator CEM 480 m3/h - Schneider Electric - NSY17992

Download
