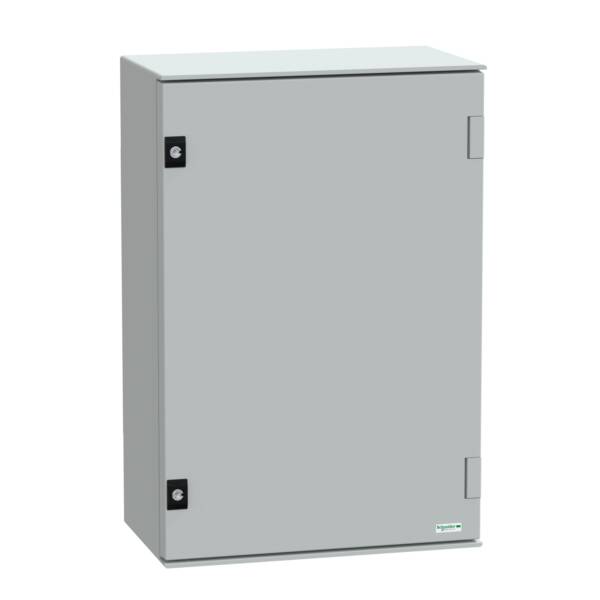

wall-mounting encl. polyester monobloc IP66 H647xW436xD250mm+bakelite mount.pl. - Schneider Electric - NSYPLM64BG

wall-mounting encl. polyester monobloc IP66 H647xW436xD250mm+bakelite mount.pl. - Schneider Electric - NSYPLM64BG

NSYPLM64BG

wall-mounting encl. polyester monobloc IP66 H647xW436xD250mm+bakelite mount.pl. - Schneider Electric - NSYPLM64BG

Enclosures

~~List Price £212.39 +VAT~~

Our Price £159.29 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

PanelSeT PLM wall-mounting polyester enclosure monobloc. 647x 436x 250 mm. Built-in canopy, one piece moulded with notches in the rear. Mounting plate bakelite. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Brand: Schneider Electric
Range: PanelSeT PLM GRP Enclosures
Part No: NSYPLM64BG
Weight (kg): 11.10 kg
Type: Thalassa PLM GRP Enclosures
With mounting plate: TRUE
With glazed door: FALSE
Wall fastening possible: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 647
Degree of protection (IP): IP66
Pitched roof: FALSE
Colour: Grey
Width: 436
Surface finishing: Untreated
Material: Plastic
Number of doors: 1
Number of locks: 2
Suitable for outdoor set-up: TRUE
Material quality: Polyester
Wall build in: TRUE
Depth: 250
Mounting plate depth-adjustable: TRUE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 4X
Pole fastening: TRUE
With backside door: FALSE
Floor installation possible: FALSE

Datasheet for NSYPLM64BG - wall-mounting encl. polyester monobloc IP66 H647xW436xD250mm+bakelite mount.pl. - Schneider Electric - NSYPLM64BG

Download
