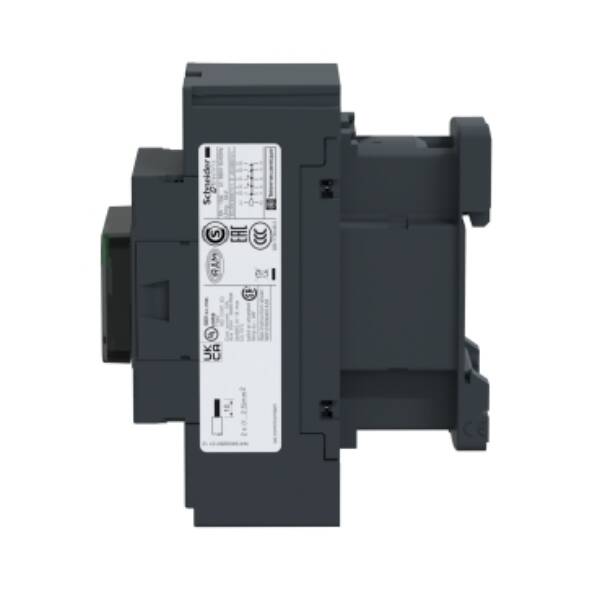

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 230 V AC standard coil - Schneider Electric - CAD323P7

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 230 V AC standard coil - Schneider Electric - CAD323P7

CAD323P7

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 230 V AC standard coil - Schneider Electric - CAD323P7

Control

~~List Price £48.51 +VAT~~

Our Price £36.38 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys K, D, SK Control Relays
Part No: CAD323P7
Weight (kg): 0.38 kg
Type: TeSys K, D, SK Control Relays
Rated control supply voltage Us at AC 50HZ: 230 V
Rated control supply voltage Us at AC 60HZ: 230 V
Interface: FALSE
Connection type auxiliary circuit: Spring clamp connection
Number of auxiliary contacts as normally closed contact: 2
Number of auxiliary contacts as normally open contact: 3
With LED indication: FALSE
Mounting method: DIN-rail/screw
Rated operation current Ie, 400 V: 10
Voltage type for actuating: AC
Manual operation possible: FALSE

Datasheet for CAD323P7 - TeSys D control relay - 3 NO + 2 NC - <= 690 V - 230 V AC standard coil - Schneider Electric - CAD323P7

Download
