GS1ND3

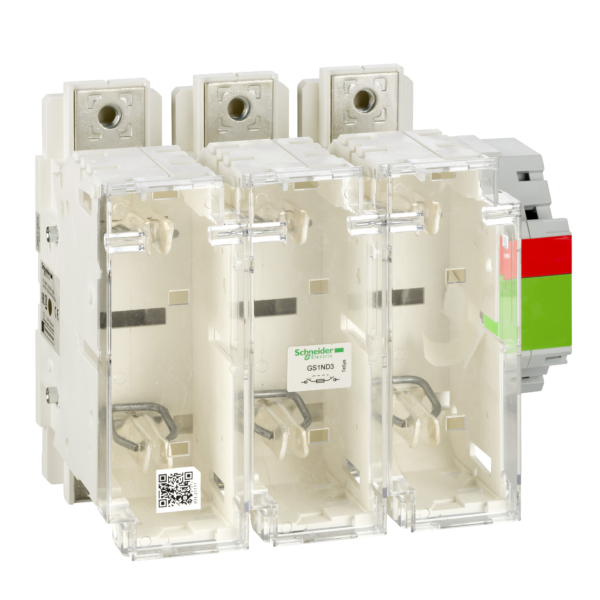

TeSys GS - switch-disconnector fuse - 3 P - 250 A - DIN 1 - Schneider Electric - GS1ND3

Control

~~List Price £1,042.66 +VAT~~

Our Price £782.00 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys GS fuse switch-disconnector, 3 poles (3P), 250A/750V, to be used with DIN blade fuse links size 1 up to 250A, for motor applications up to 132kW@400V AC-23. To be equipped with a direct operating handle GS1AH02 (to be ordered separately), for using an external operating handle select a fuse switch-disconnector type GS2N. Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 1 blade fuse links without strickers DF2HA, DF2HN and with strickers DF4HA, DF4HN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys GS
Part No: GS1ND3
Weight (kg): 3.57 kg
Type: TeSys GS
